TNMG160408 MA Turning Carbide Lathe Inserts Tnmg 160404 160408 160412

Carbide lathe inserts Tnmg 160404,Carbide inserts for cnc machines,TNMG160408 carbide lathe inserts

Cemented carbide CNC T-series turning inserts are commonly used in mechanical lathe processing. They have the characteristics of sharp blade, smooth chip breaking, wear resistance and durability. They can be used for the processing of steel parts, stainless steel, cast iron, aluminum alloy and other materials. They are not easy to stick the knife,and have a long service life.


Product Detail

Product Tags

Kedel Turning inserts Features

TNMG-3-21

1.High wear-resistant, good smoothness;

2. Fine coating, easy to slotted;

3. Exellent performance, nanometer coating;

4. Sharp blade, smooth cutting;

5. Steel material, easy handle.

TNMG Series

inserts

Blade Details

Model TNMG160404/08/12 TNMG2204/08/12 TNMG270612
Grade KD2115,KD2125,KD3215
Wordpiece steel/harded steel/stainless steel/cast iron
Coating CVD/PVD coating
MOQ 10 PCS
Package 10 pcs in one box
Service OEM/ODM

Recommended material as below

Grade

ISO Code

Density

g/cm³

Hardness

HRA

T.R.S

MPa

Applications recommended

YG3

K05

15.10

92.0

1400

Suitable for finishing of cast iron and nonferrous metal.

YG6X

K10

14.95

91.5

1800

The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.

YG6

K15

14.95

90.5

1900

Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

YG8

K20

14.80

89.5

2200



YW1

M10

13.10

91.6

1600

Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel.

YW2

M20

13.00

90.6

1800

The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.

YT15

P10

11.4

91.5

1600

Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed.

YT14

P20

11.6

90.8

1700

Suitable for the finishing and semi-finishing of steel and cast steel.

YT5

P30

12.9

90.5

2200

Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.

Chipbreaker Introduction

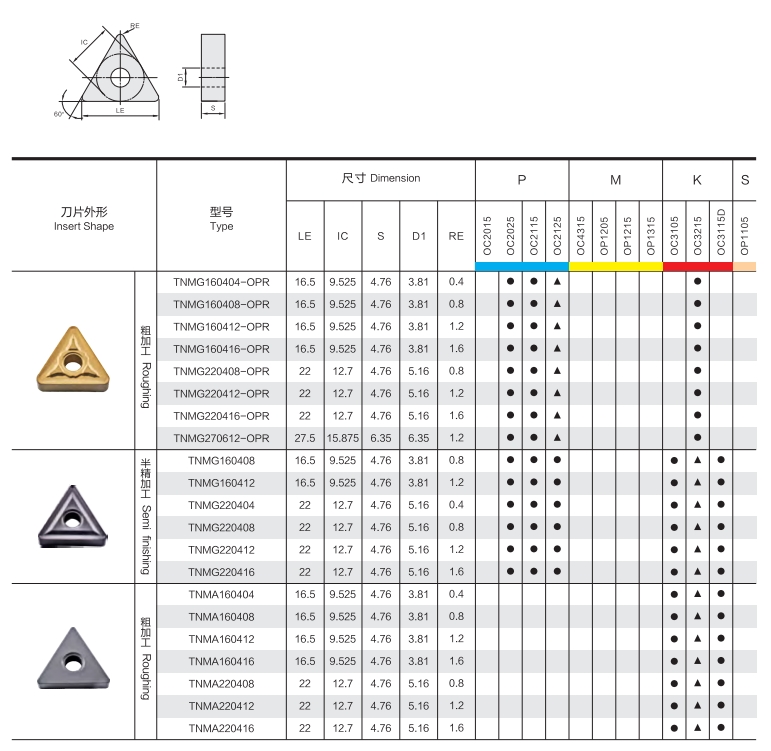

Reference Sizes

turning insert 01
turning inserts 02
turning inserts 03
