Solid Carbide Fresa Diamond Coating CNC 4 Flutes Square End Mill Cutters

Carbide milling cutters are mainly used in CNC machining centers, CNC engraving machines and high-speed machines. They can also be installed on ordinary milling machines to process some hard and uncomplicated heat treatment materials. The 55 degree 4 flutes tungsten steel flat end milling cutter produced by Kedel has the characteristics of high hardness, strong wear resistance and provides you with sharp, wear-resistant and long-life cutting tools.


Product Detail

Product Tags

Detailed Specificatoin

These Kedel square end four flute stub length carbide end milling cutters feature a 30 helix angle and are center cutting for plunging, slotting and profiling. As with all of our solid carbide tools, these stub end mills are manufactured using state-of-the-art machinery, manufacturing processes and inspection techniques, making them the preferred choice of carbide endmills for machinists wanting to produce high quality parts with maximum tool life. The addition of our ALTiN coating allows for increased speeds & feeds as well as longer tool life.

1. Fully enables running at rough machining parameters, resulting in finish surface quality.
2. Excellent performance in machining titanium, stainless steel and high temperature alloys.
3. The coating provides longer tool-life or increased cutting-values.
4. Suitable for all types of steel or metal.

Premium Sub-Micrograin Solid Carbide End Mill
4 Flute
Square End
Single End
30° Helix
Stub Length End Mills
Center Cutting Carbide Endmill
ALTiN Coated for Increased Performance & Tool Life
Made in China

ALTIN Coating: A high performance coating for milling stainless steels, carbon steels, alloy steels, and cast iron. This coating is extremely heat resistant and can be used with or without coolant. It is exceptional in difficult to machine materials where adhesive wear is particularly high.

Application

1. For Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. For aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

About Coating

Coating Introduction
ENDMILL GRADE Coating Name Color Hv μm Friction The Max ℃
HRC45 coating AlTiN black 3300 1--4 0.7 850℃
HRC55 coating TiSiAlN bronzed 3400 1--4 0.7 900℃
HRC60 coating AlCrSiN black 4000 1--7 0.35 1100℃
HRC65 coating nACo 3 Blue blue 4500 1--7 0.45 1200℃
Stainless Steel coating nACo 3 Gold golden 4500 1--7 0.55 1200℃
coating

About Cutting

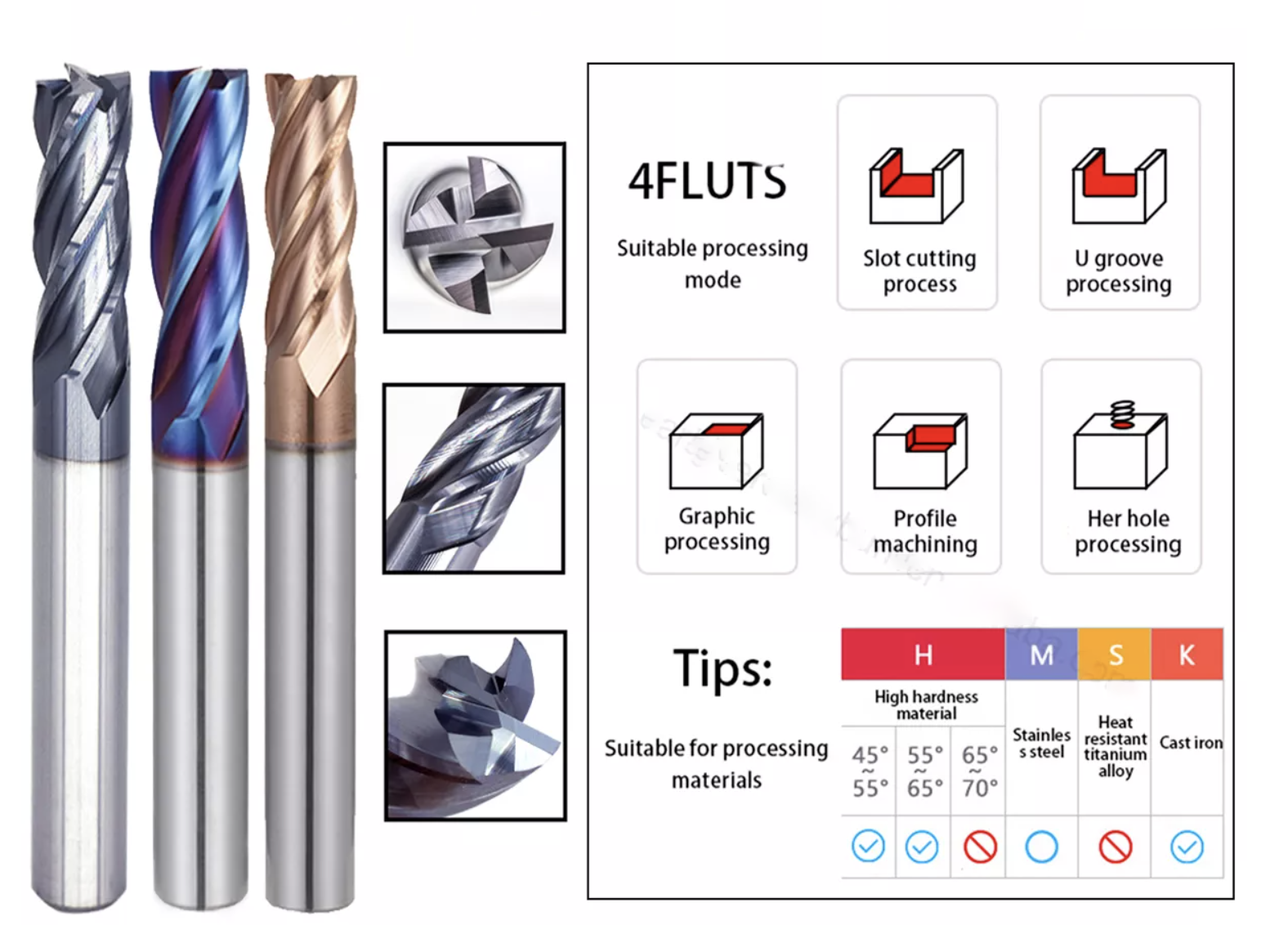

flute
flutes
